Motori elettrici asincroni trifase serie LR


Dimensioni grandezze 160÷355 (mm)

Carcassa in ghisa

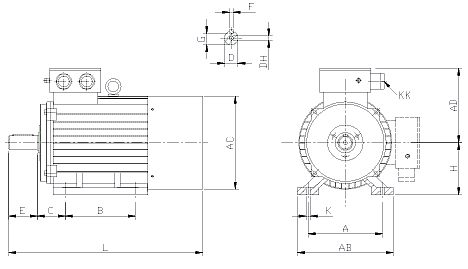

Forma costruttiva B3 in ghisa con piedi
Forma costruttiva B3
Motore
Motor		 Albero
Shaft		 Ingombri
Overall dim.		 B3
LR ØD DH E F G ØAC AD H KK L A AB B C K
160M 42k6 M16x36 110 12 37 330 260 160 2xM40 615 254 320 210 108 15
160L 42k6 M16x36 110 12 37 330 250 160 2xM40 670 254 320 254 108 15
180M 48k6 M16x36 110 14 42.5 380 275 180 2xM40 700 279 355 241 121 15
180L 48k6 M16x36 110 14 42.5 380 275 180 2xM40 740 279 355 279 121 15
200 55k6 M20x42 110 16 49 420 305 200 2xM50 770 318 395 305 133 19
225S 60k6 M20x42 140 18 53 470 330 225 2xM50 815 356 435 286 149 19
225M 2 poli 55k6 M20x42 110 16 49 470 330 225 2xM50 820 356 435 311 149 19
225M 4÷8 poli 60k6 M20x42 140 18 53 470 330 225 2xM50 845 356 435 311 149 19
250 2 poli 60k6 M20x42 140 18 53 510 365 250 2xM63 910 406 490 349 168 19
250 4÷8 poli 65k6 M20x42 140 18 56 510 365 250 2xM63 910 406 490 349 168 19
280S 2 poli 65k6 M20x42 140 18 56 580 400 280 2xM63 985 457 550 368 190 19
280S 4÷8 poli 75k6 M20x42 140 20 67.5 580 400 280 2xM63 985 457 550 368 190 19
280M 2 poli 65k6 M20x42 140 18 58 580 400 280 2xM63 1035 457 550 419 190 19
280M 4÷8 poli 75k6 M20x42 140 20 67.5 580 400 280 2xM63 1035 457 550 419 190 19
315S 2 poli 65k6 M20x42 140 18 58 645 530 315 2xM63 1160 508 636 406 216 24
315S 4÷8 poli 80k6 M20x42 170 22 67.5 645 530 315 2xM63 1270 508 635 406 216 24
315M 2 poli 65k6 M20x42 140 18 58 645 530 315 2xM63 1190 508 635 457 216 24
315M 4÷8 poli 80k6 M20x42 170 22 67.5 645 530 315 2xM63 1300 508 635 457 216 24
315L 2 poli 65k6 M20x42 140 18 58 645 530 315 2xM63 1190 508 635 508 216 24
315L 4÷8 poli 80k6 M20x42 170 22 67.5 645 530 315 2xM63 1300 508 635 508 216 24
355M 2 poli 75k6 M20x42 140 20 67.5 710 655 355 2xM63 1500 610 730 560 254 24
355M 4÷8 poli 95k6 M20x42 170 25 86 710 655 355 2xM63 1530 610 730 560 254 24
355L 2 poli 75k6 M20x42 140 20 67.5 710 655 355 2xM63 1500 610 730 630 254 24
355L 4÷8 poli 95k6 M20x42 170 25 86 710 655 355 2xM63 1530 610 730 630 254 24

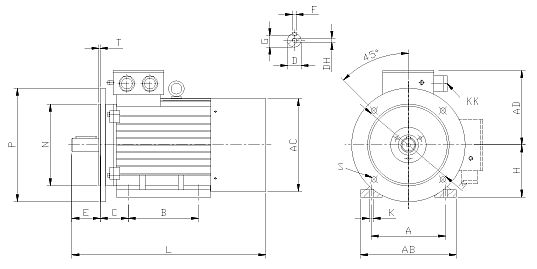

Forma costruttiva B35 in ghisa con piedi e flangia
Forma costruttiva B35

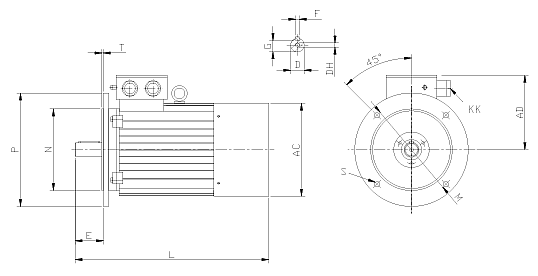

Forma costruttiva B5 in ghisa con flangia
Forma costruttiva B5
Motore
Motor		 Albero
Shaft		 Ingombri
Overall dim.		 B5
LR ØD DH E F G ØAC AD H KK L ØM ØN ØP ØS T
160M 42k6 M16x36 110 12 37 330 260 160 2xM40 615 300 250 350 19 5
160L 42k6 M16x36 110 12 37 330 250 160 2xM40 670 300 250 350 19 5
180M 48k6 M16x36 110 14 42.5 380 275 180 2xM40 700 300 250 350 19 5
180L 48k6 M16x36 110 14 42.5 380 275 180 2xM40 740 300 250 350 19 5
200 55k6 M20x42 110 16 49 420 305 200 2xM50 770 350 300 400 19 5
225S 60k6 M20x42 140 18 53 470 330 225 2xM50 815 400 350 450 19 5
225M 2 poli 55k6 M20x42 110 16 49 470 330 225 2xM50 820 400 350 450 19 5
225M 4÷8 poli 60k6 M20x42 140 18 53 470 330 225 2xM50 845 400 350 450 19 5
250 2 poli 60k6 M20x42 140 18 53 510 365 250 2xM63 910 500 450 550 19 5
250 4÷8 poli 65k6 M20x42 140 18 56 510 365 250 2xM63 910 500 450 550 19 5
280S 2 poli 65k6 M20x42 140 18 56 580 400 280 2xM63 985 500 450 550 19 5
280S 4÷8 poli 75k6 M20x42 140 20 67.5 580 400 280 2xM63 985 500 450 550 19 5
280M 2 poli 65k6 M20x42 140 18 58 580 400 280 2xM63 1035 500 450 550 19 5
280M 4÷8 poli 75k6 M20x42 140 20 67.5 580 400 280 2xM63 1035 500 450 550 24 5
315S 2 poli 65k6 M20x42 140 18 58 645 530 315 2xM63 1160 600 550 660 24 6
315S 4÷8 poli 80k6 M20x42 170 22 67.5 645 530 315 2xM63 1270 600 550 660 24 6
315M 2 poli 65k6 M20x42 140 18 58 645 530 315 2xM63 1190 600 550 660 24 6
315M 4÷8 poli 80k6 M20x42 170 22 67.5 645 530 315 2xM63 1300 600 550 660 24 6
315L 2 poli 65k6 M20x42 140 18 58 645 530 315 2xM63 1190 600 550 660 24 6
315L 4÷8 poli 80k6 M20x42 170 22 67.5 645 530 315 2xM63 1300 600 550 660 24 6
355M 2 poli 75k6 M20x42 140 20 67.5 710 655 355 2xM63 1500 740 680 800 24 6
355M 4÷8 poli 95k6 M20x42 170 25 86 710 655 355 2xM63 1530 740 680 800 24 6
355L 2 poli 75k6 M20x42 140 20 67.5 710 655 355 2xM63 1500 740 680 800 24 6
355L 4÷8 poli 95k6 M20x42 170 25 86 710 655 355 2xM63 1530 740 680 800 24 6
